Desdription:

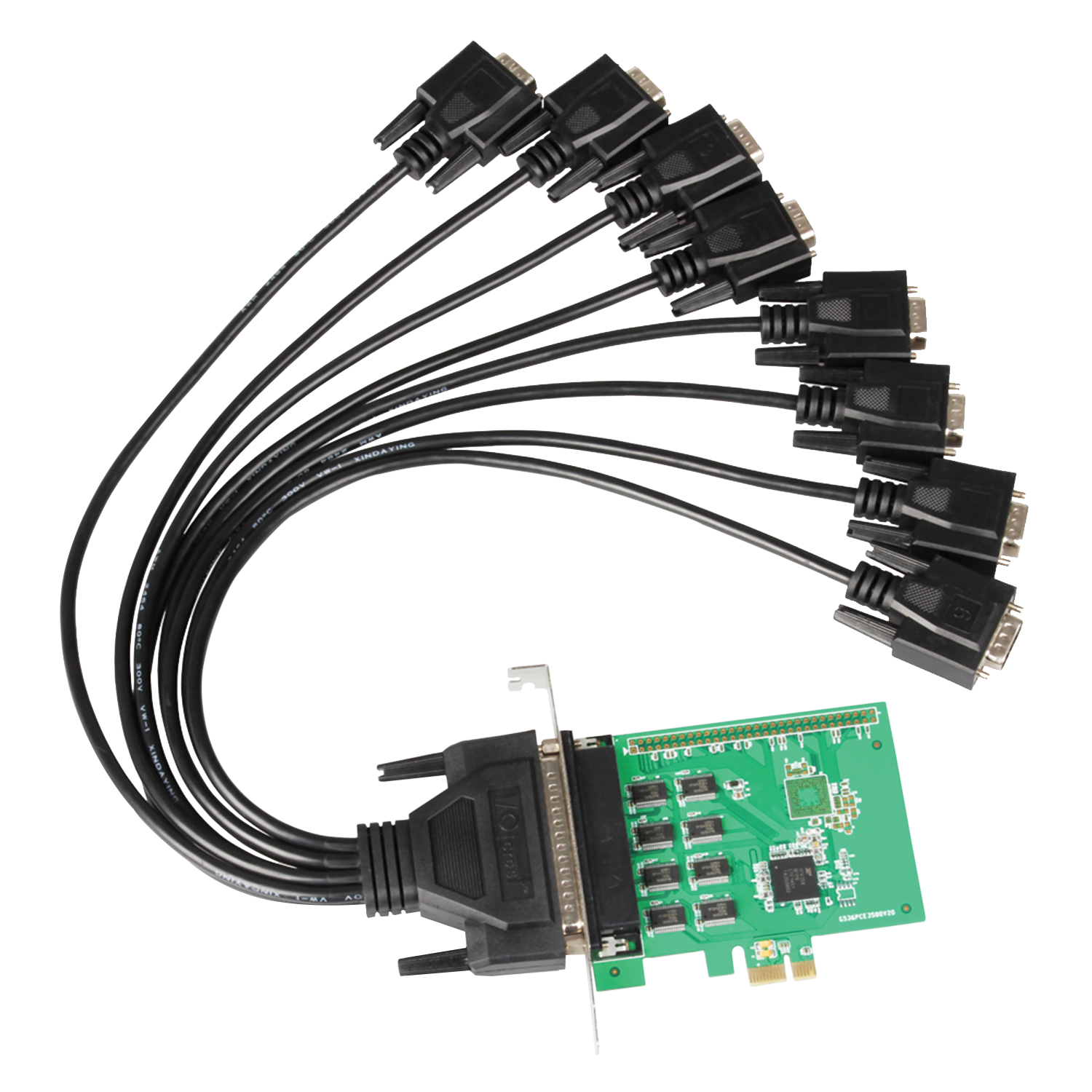

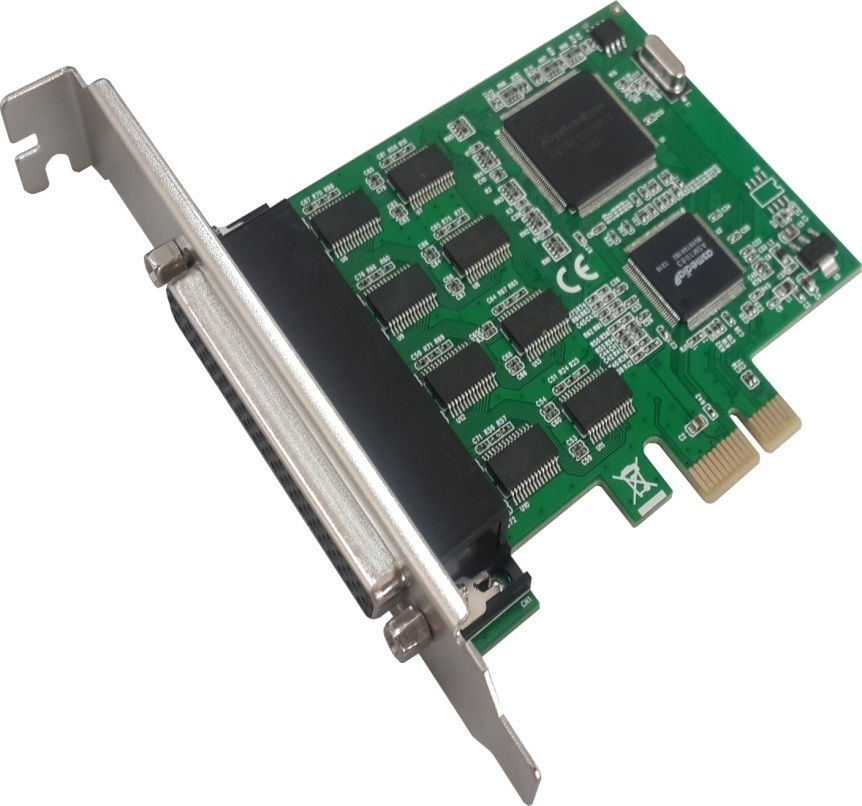

The PCI-Express Multi-I/O card is designed based on a high performance PCI serial communication chip form Systembase company, and PCI-Express to PCI bridge (AsMedia),providing multiple serial device connectivity to your desktop computer ,Most of the latest motherboards on longer come with a serial port,By using this card, user can add multiple serial ports to their computer for connecting serial devices ,the product offers superior performance and unmatched data transfer, it is ideal for industrial automation applications
Features & specification
General
- Easy installation automatically selects IRQ and I/O address
- Fully compliant with PCI-Express Base Specification Revision1.1
- Supports IRQ sharing feature ,saves valuable resources for other add-on cards
- Supports multiple cards on one PC.
- Supports Operating System: dos/98/se/me/2000 SP4/XP/Server 2003/Vista/Win7/server 2008 .Linux kernel2.6.14 or above
Serial port (RS232) interface
- Compatible with industrial standard 16c550 URAT
- On-chip 256-byte transmit FIFO and 256-byte perceive FIFO for each serial port
- Fast data rate up to 230.4kbps on each port
- Supports hardware and software flow control
- Supports 5-.6-.7-.8-bit serial format
- Supports Even. Odd or No parity Bit Generation and detection
- Supports 1.1.5or 2 Stop Bit Generation
System Requirements
- * Windows® 98/se/me/2000 SP4/XP/Server 2003/Vista/Win7/Server 2008 (32/64bit).Linux kernel2.6.14 or above
- * Available PCI-Express X1 slot
