The PCIe Multi -I/O CARD uses the PCI-Express interface standard for expansion bus. enabling this card to be installed on any PCI-Express capable PC desktop system. By using this card add serial ports to the computer for connecting their devices. The PCIe Multi -I/O CARD card use the chip of CH382L, It supports the maximum rate of 8Mbps and it can be used for PCIE bus RS232 serial port expansion, By using this card add serial ports to the computer for connecting their devices.
Add On Cards, PCI Express Serial Cards

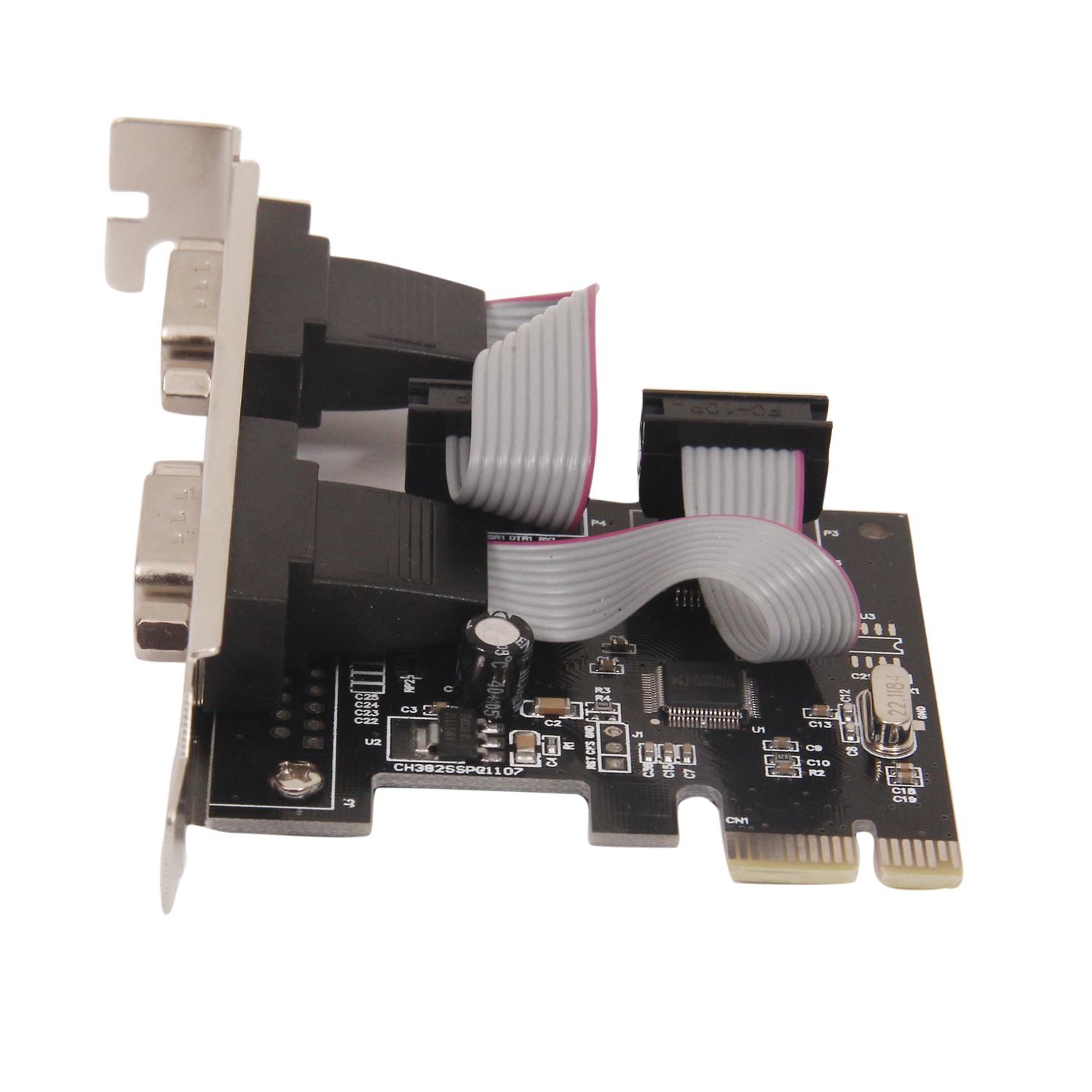

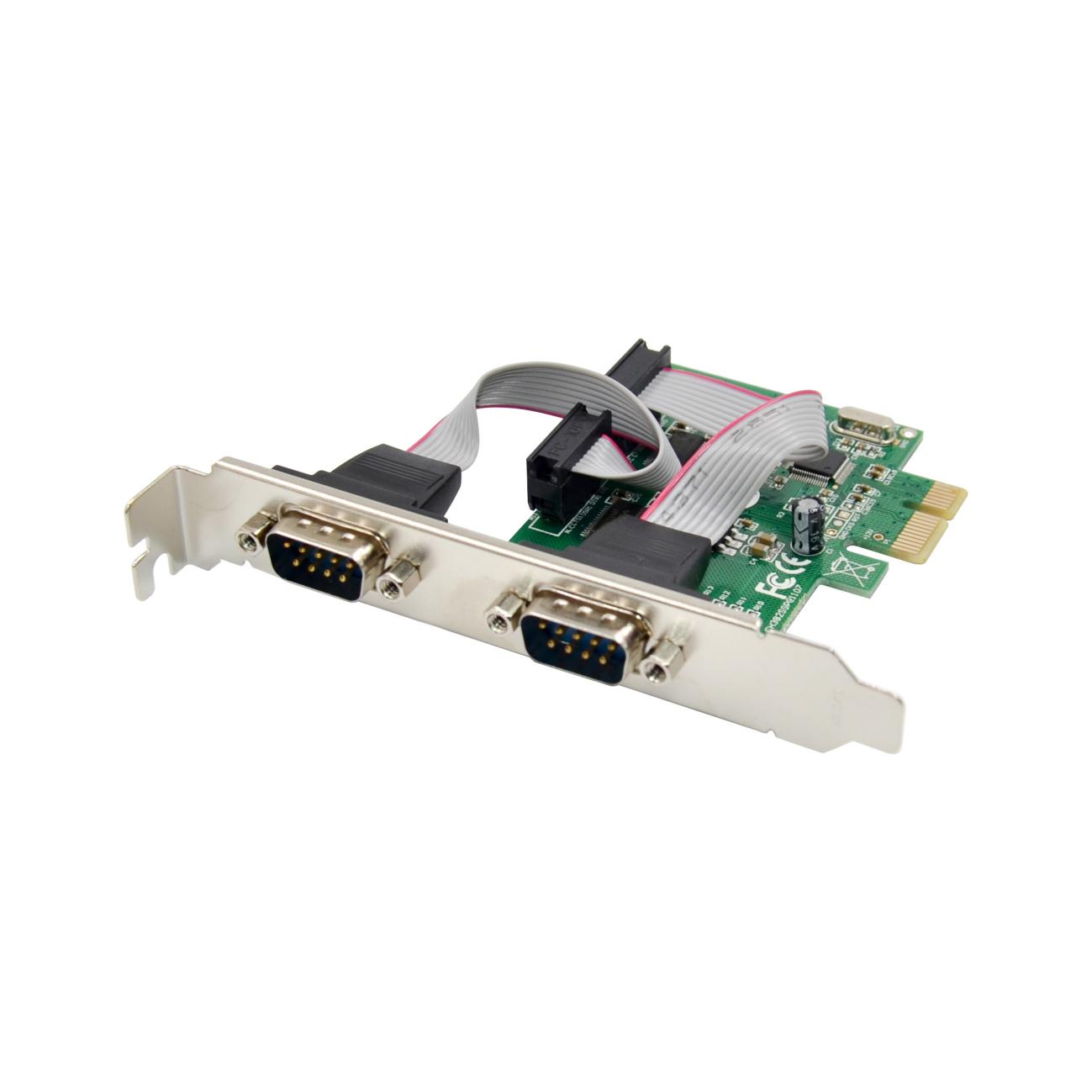

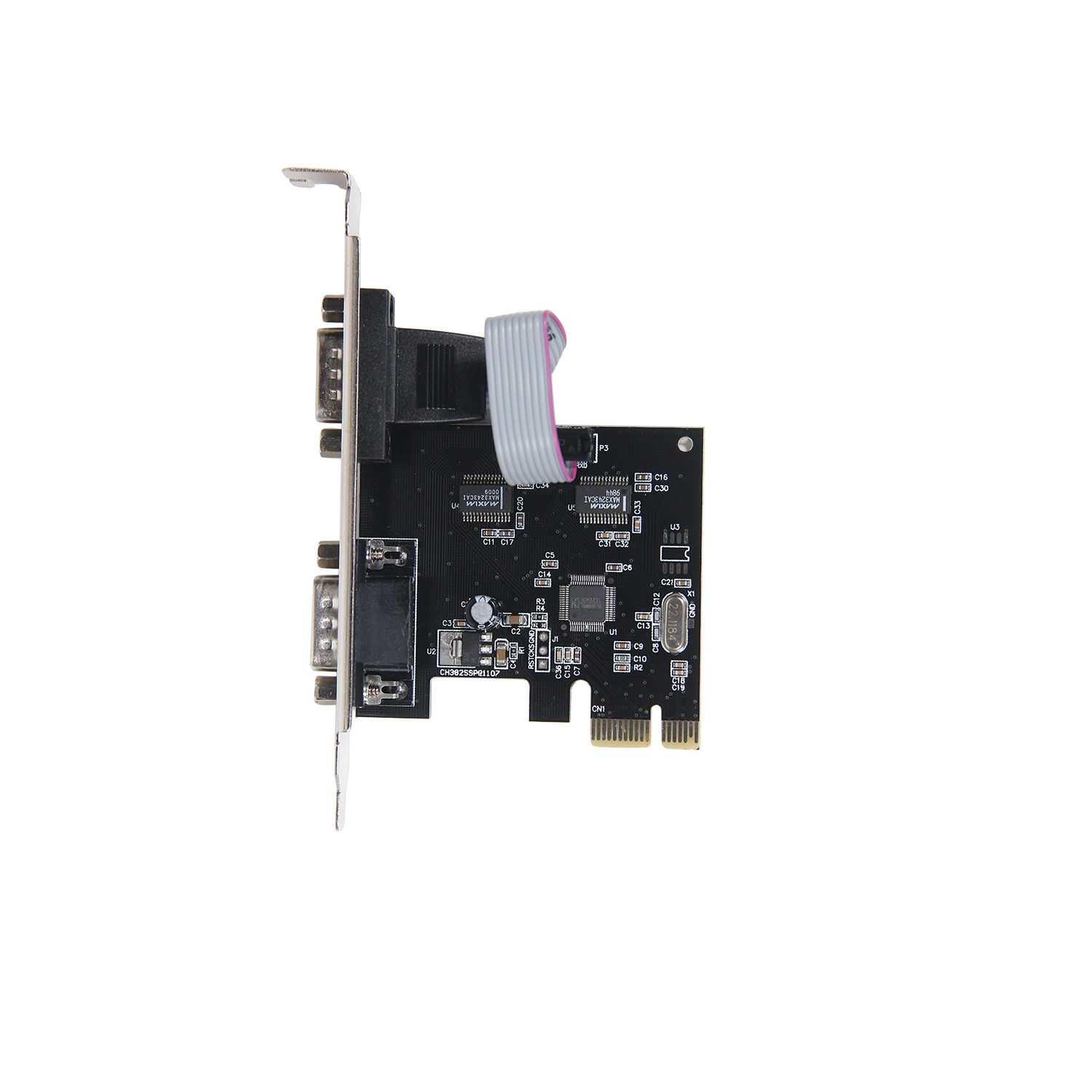

PCIe CH382L 2S DB9 RS232 Serial Card AI-S301 2S
Brand : ADITRON
Model : AI-S301 2S
Category : PCI Express Cards
Tag s : it products, PCI e
₹1,990.00
CompareSpecification
- Fully compliant with PCI-Express Base Specification Revision1.1
- Single-lan PCI-Express with throughput up to 2.5Gbps
- Compatible with industrial standard 16C550\16C552\16C554 and 16C750 UART
- On chip 256-byte depth FIFO in transmit, receive path of each port
- Supports hardware and software flow control
- Data transfer rates up to 115Kbps on each port
- Supports5.6.7.and 8bit serial format
- Supports even, Odd , None mark and space parity
- 1 or 2 stop bit mode
- Chipset: WCH CH382L
Package content
- 1 x PCIe CH382L 2S DB9 RS232 Serial card
- 1 x CD

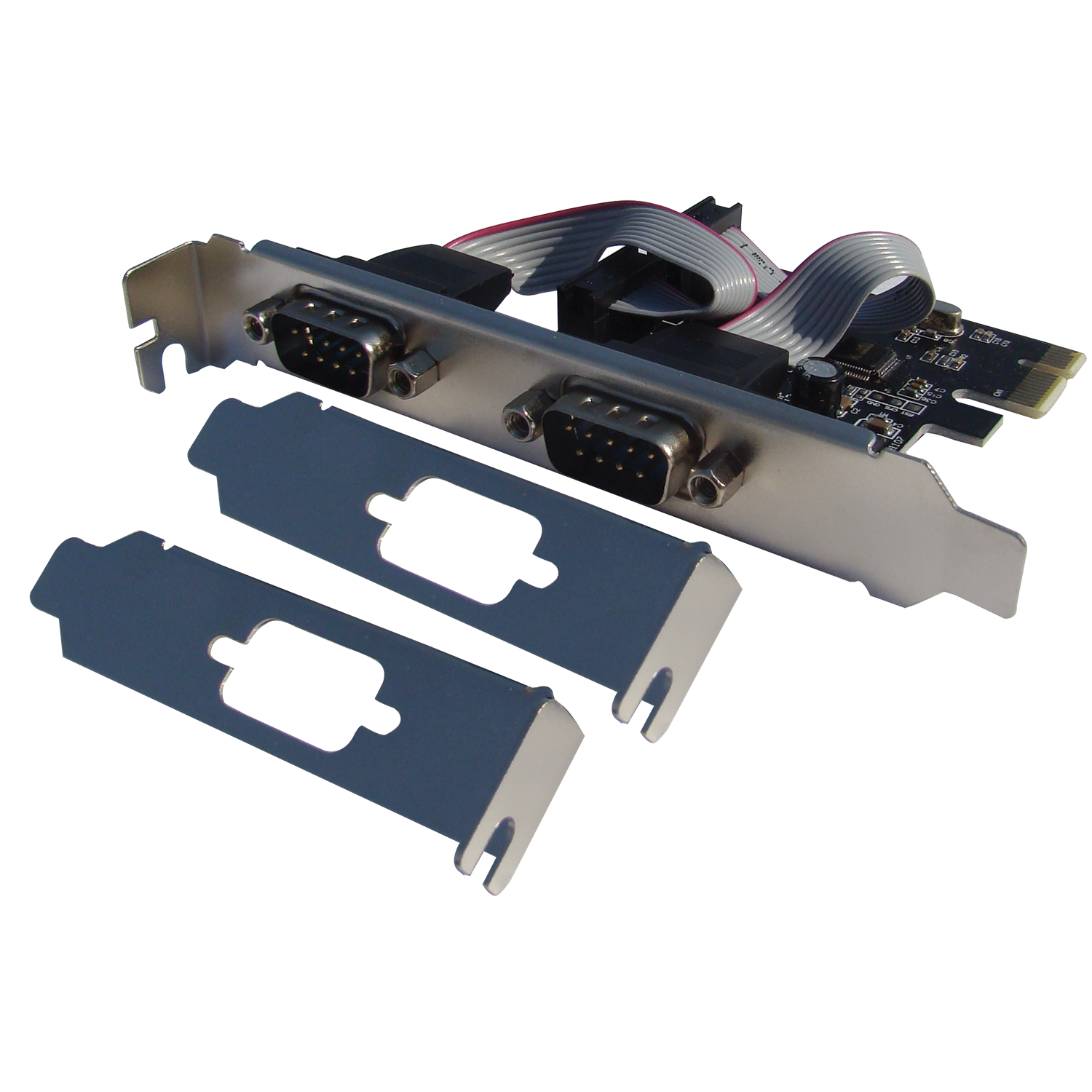

- 2 x Low profile bracket
- Accessories
Bus Interface
PCI-Express
Connectors
2 x DB9 Serial
System Requirements
Windows DOS/Linux/2000/Server2003/xp/Vista/Server 2008/Win 7/Win 8/Win8.1/Win10(32/64bit)
